RFID READER KW2D SERIES



RFID FEATURES FOR INDUSTRIAL APPLICATIONS



RJ45 Ethernet
Standard Ethernet port for configuration and communication

22mm Panel Cutout
Designed and easily installed on a standard 22mm industrial panel

LED and Buzzer
Equipped with White, Green, and Red LED for visual indications.
Built-in auxiliary buzzer provides audible feedback of successful and error conditions.

Push-in Terminal
The power terminal use push-in technology for easy and secure connection

IP65/67 Rating
IP65/67 rated for protection from water, dust, and oil

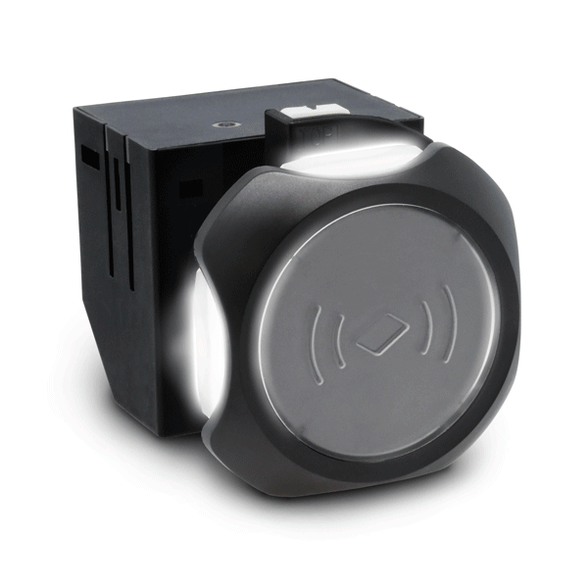

KW2D-Feature

High Frequency band
KW2D supports 13.56 MHz high frequency band (Type A, F or V Standard) used in RFID card reader systems.

Industrial Communication Protocols
Supports EtherNet/IP (adapter), Modbus TCP (server) and CC-Link IE Field Basic Slave for seamless communication with host device

Designed to work on metal surfaces
Designed to work on metal surfaces used at factory automation sites

IDEC or 3rd party Tags/Badges
IDEC or 3rd party Tags/Badges

SECURE ACCESS AND TRACEABILITY

Template-Blog-Banner (1)

Machine authorisation (modes of safe operation)

Utilising RFID tags and RFID tag reader technology, smart RFID systems enhance operational efficiency even in demanding commercial and industrial environments.

Access Control

From building entrances to complex industrial sites, our robust RFID industry solutions provide secure and reliable monitoring and control of personnel movements.

Template-Blog-Banner (2)
 Integrity of sterile environments
RFID access control systems enforce restricted and controlled access to clean rooms, guaranteeing operational integrity and cleanliness in critical environments like pharmaceutical manufacturing and food processing.

Industrial safety

RFID sensor technology ensures controlled access in sensitive environments, supporting stringent contamination prevention protocols.

APPLICATIONS

  • 240_F_274775942_mRfNBRwHtQ6wAh4Nh5kPifjZu0mKwm5Z

    Food Machines

  • 240_F_285934002_2Lr553KfSkM4PR4ynqbEPh5oGgsHYQ8R

    Machine Tools

  • CleanRooms

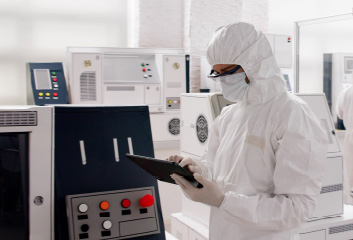

     Clean Rooms and Hygienic Areas

  • 240_F_309673995_2h7o6okM6qB8bHUm2K10dA9iuTSQQp1I

    Semiconductors

  • 240_F_218627435_eEkh0B5tBjEIagxexEcj5jGYEsXz0qyU

    Injection Mold Machines

  • 240_F_140964001_bmjaGiGrQJQ5BRaheld1SKgaWr3PqpvI

    Gates / Doors



RFID PRODUCT SELECTION GUIDE

3-1

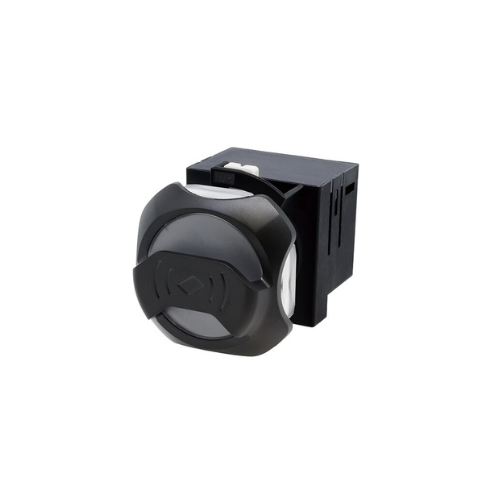

RFID MAIN UNITS
RFID reader with and without holder

2-1

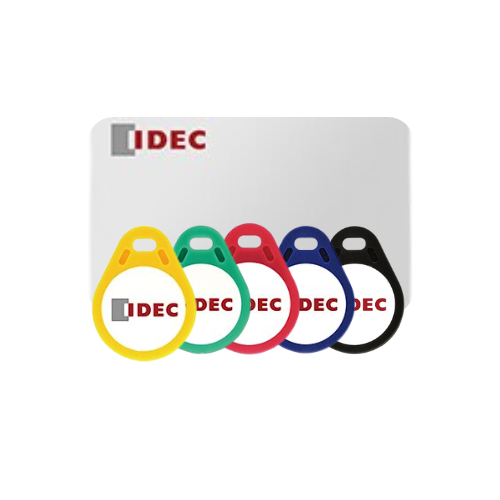

RFID TAGS
Card of FOB tag

4-2

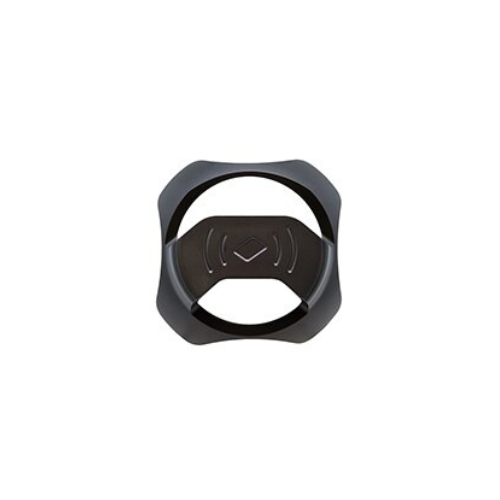

ACCESSORIES
Cover with or without holder

Untitled design (17)

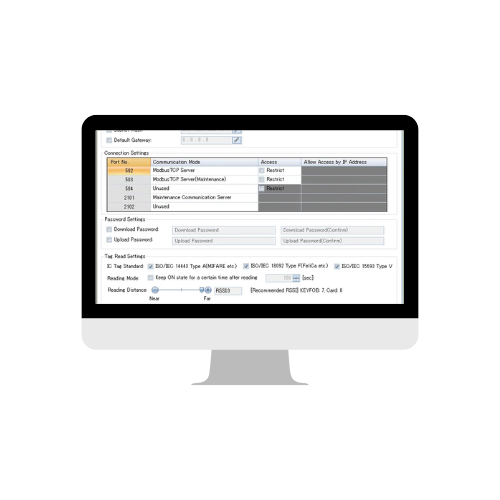

RFID SOFTWARE
Manage access and permissions

Explore RFID's Role in Industrial Automation

Gain insights into how RFID technology enhances machine safety and operational efficiency. Our whitepaper, "Advancing Industrial Efficiency: Integrating RFID for Enhanced Machine Safety and Security," offers detailed analysis and case studies.



IDEC-WhitePaper_cover

#faqs

FAQs: RFID ACCESS AND TRACEABILITY

Have Question? We are here to help.

What style of RFID tag IDEC offer?

IDEC offers durable, color-coded fob and card style RFID tags that are easy to carry and designed to withstand harsh elements, ideal for industrial RFID readers and RFID access control systems.



How does IDEC RFID tag works?

Each RFID tag reader-compatible tag carries a unique ID, which is readily associated with specific workers or user categories to provide layered RFID access control at varying levels.

What operating frequency IDEC RFID reader operate at?

The KW2D industrial RFID reader operates at a standard 13.56 MHz high-frequency band (Type A, F, or V standards), typical for RFID sensor applications.

What security features are included in the IDEC RFID solution?

IDEC’s RFID system includes advanced encrypted message exchanges between the RFID tags/fobs and the RFID reader, enhancing security significantly beyond typical market offerings.

Is it possible to duplicate an IDEC RFID tag?

 To address concerns about tag duplication, our KW2D RFID tags include an extra level of password encryption with a special bit to verify if the tag is an authentic IDEC tag, offering superior security compared to standard RFID tags.

What type of RFID tag does IDEC use?

IDEC utilises passive RFID tags, which are lightweight and do not require batteries, ideal for sustainable RFID systems.

Is it mandatory to use IDEC RFID tags with the reader?

 While IDEC RFID systems are optimised for IDEC tags, our devices also support third-party tags or badges. These RFID readers are flexible, working with any tag that operates at 13.56 MHz (Type A, V, or F standards).

How is the RFID device mounted?

 This RFID device installs seamlessly into typical 22mm panel-mount holes, integrating easily with other industrial control elements like switches, buttons, and lights.

Is it possible to issue a new RFID tag without reprogramming using the software program and a computer?

Yes, new RFID tags can be issued without the need for reprogramming using the software program and a computer, by utilising the default authorisation levels provided. All IDEC tags are color-coded and preset with these authorisation levels.

Can this RFID product interface with other manufacturers' PLC and HMI systems?

 Yes, our industrial RFID reader supports various industrial communication protocols, including Modbus TCP Server, EtherNet/IP Adapter, and CC-Link IE Field Basic Slave, ensuring compatibility across different manufacturers' PLC and HMI systems.

Need a demo or more information?

Our team of experts is here to guide you through product selection, integration, or technical questions. Tell us about your project — we’ll get back to you quickly.

Contact us

IDEC red30-1
img_teams-IDEC

IDEC: innovating automation for over 80 years

IDEC Corporation is a global leader in industrial automation and control solutions, committed to enhancing safety, efficiency, and peace of mind – ANSHIN – for both machines and their operators. Since its founding in Japan in 1945, IDEC has been delivering innovative, reliable, and feature-rich products, including PLCs, human-machine interfaces (HMIs), safety components, and other automation systems. Strengthened by the acquisitions of APEM and ez-Wheel, IDEC continues to expand its portfolio, providing high-quality solutions designed to meet the demands of modern industrial applications. To learn more, visit eu.idec.com.
