A safer way to stop machines - even from a distance

The IDEC Assisted E-Stop is a fully safety-rated 22 mm emergency-stop switch that can be operated manually or activated remotely to help protect people in dangerous situations.

REQUEST ON-SITE DEMONSTRATION →
DOWNLOAD PRODUCT INFORMATION →

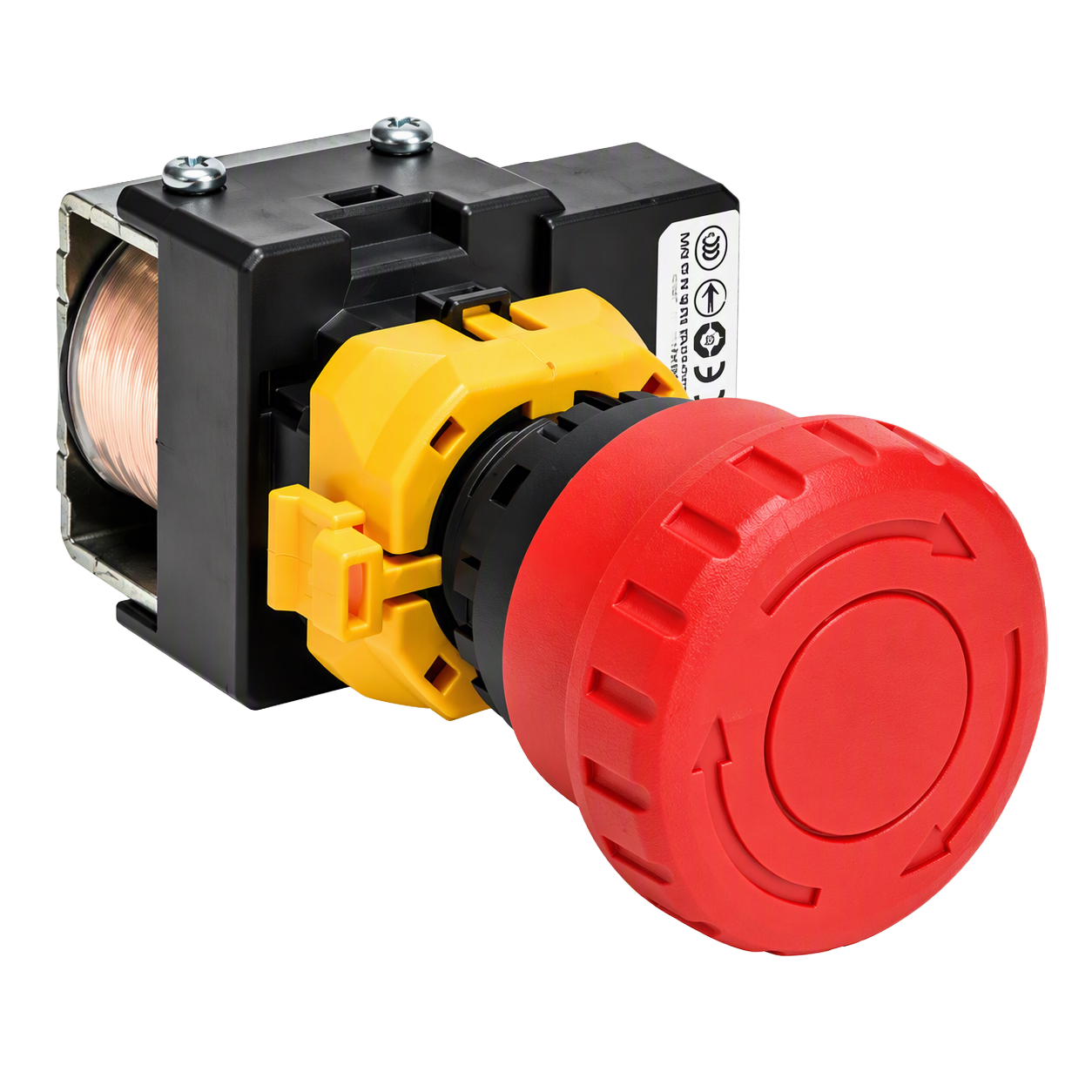

Assisted E-STOP-1
Fully safety-rated
emergency-stop switch
Manual operation
always available
Optional wireless
systems available
Designed for real-world
industrial applications



THE CHALLENGE

There are times when reaching the E-stop can be the most dangerous part.

In fast moving or hard-to-access situations, going to press a traditional E-stop can put people at risk. The Assisted E-stop helps you stop the machine from a safer location.

FolderEstop-appri02-US

AGVs and AMRs carrying heavy loads
Reaching a low-mounted E-stop can
be dangerous if the load is unstable.

lp-SE2L-img06

Unexpected machine motion. When a
machine moves out of control, it may not
be safe to get close enough to press the
E-stop.



THE SOLUTION

The Assisted E-stop gives you a safe, reliable option.

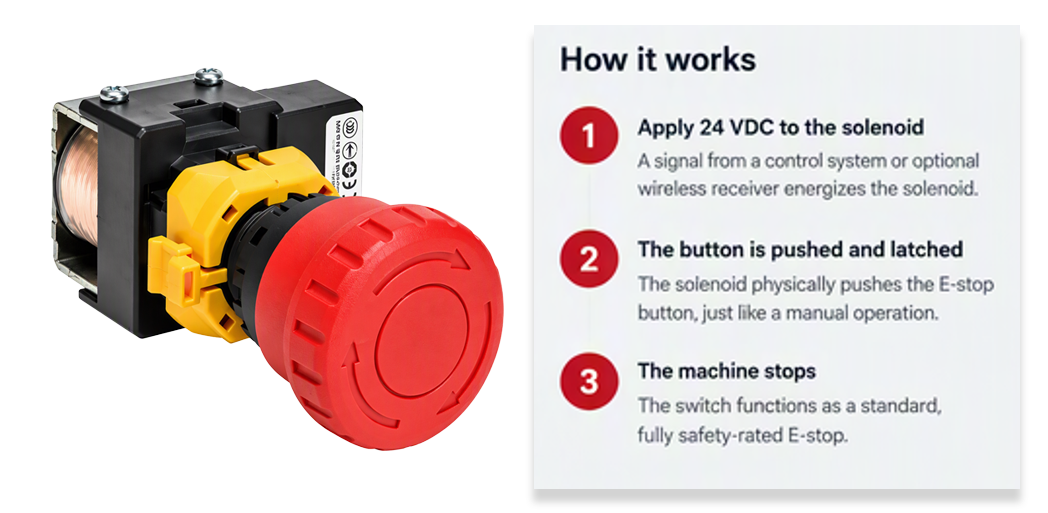

The IDEC Assisted E-stop is a 22 mm emergency-stop switch with an integrated solenoid that can physically push and latch the button on command. It functions exactly like a standard E-stop, with the  added capability for remote activation.

✔ Stop the machine manually or remotely
✔ Helps protect people in hazardous situations
✔ Same trusted 22 mm E-stop form factor
✔ Optional wireless sysmote available

REQUEST ON-SITE DEMONSTRATION →
DOWNLOAD PRODUCT INFORMATION →
assist 6-Recovered

THE BENEFITS
More safety. More Flexibility. A safer workplace.

What changes with AWD®?

AdobeStock_1034044135_Preview

Safer, healthier workplaces

AWD® helps you comply with ISO 11228-2 guidelines on manual handling. Operators face less fatigue and fewer musculoskeletal disorders (MSDs).

LEARN MORE

ez-Wheel_realisation-serie-150I-trolley_02

Up to 50% more efficient flow

One AWD® wheel can move up to 1 ton. Optimize logistics flows without redesigning your fleet. Ideal for tool carts, production transfer, and milk runs.

LEARN MORE

Helps protect people

Provides an option to stop machines from a safer location in hazardous situations.

Supports
real-world applications

Ideal for AGVs/AMRs, large equipment, and other hard-to-access or high-risk areas

Easy to
integrate

Uses standard 22 mm E-stop form factor for simpler installation and retrofit opportunities

Optional wireless system

IDEC can provide a wireless transmitter and receiver to be used together with the Assisted E-stop

Built on a
global standard

Aligned with international standards (e.g. IEC 60947-5-5) for E-stops with additional functions.

Built on a
global standard

Aligned with international standards
(e.g. IEC 60947-5-5) for E-stops with additional functions.

TYPICAL APPLICATIONS
Designed for the machines that keep your world moving.

Assist estop catalog thumbnail

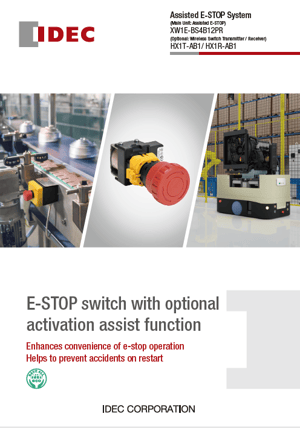

CATALOG

Assisted E-STOP System Product Catalog

Discover additional information about the Assisted E-stop series within this catalog.

DOWNLOAD CATALOG

Ready to explore Assisted E-stop for your application?

Talk to our team about your use case, integration, or a pilot project

img_teams-IDEC

IDEC: innovating automation for over 80 years

IDEC Corporation is a global leader in industrial automation and control solutions, committed to enhancing safety, efficiency, and peace of mind – ANSHIN – for both machines and their operators. Since its founding in Japan in 1945, IDEC has been delivering innovative, reliable, and feature-rich products, including PLCs, human-machine interfaces (HMIs), safety components, and other automation systems. Strengthened by the acquisitions of APEM and ez-Wheel, IDEC continues to expand its portfolio, providing high-quality solutions designed to meet the demands of modern industrial applications. To learn more, visit eu.idec.com.
