OVERVIEW
Interlock switches provide another layer of safety in industrial production environments, helping protect operators and equipment from the hazards of unexpected machine motion. IDEC offers a complete lineup of safety interlock switches to keep your personnel and production assets safe from harm. They install easily into your safety circuit to make sure doors and gates are closed before any machine or process can begin.
IDEC’s family of HS safety interlock switches comes in a wide range of sizes, contact configurations and available functions to meet the needs of multiple applications. From machine tools to material handling to packaging lines and semiconductor manufacturing, interlock switches are a robust and reliable method to help guarantee operator safety. Switches feature either metal or plastic heads and bodies and offer connection options to fit just about any safeguarding application. As with all IDEC safety products, HS interlock switches comply with domestic and European safety standards.
FEATURES
Technical Specifications
- Subminiature, miniature and full sizes fit a wide range of applications
- Basic, solenoid locking and noncontact styles available
- Metal or plastic heads
- Lightweight plastic or rugged die-cast aluminum bodies
- Screw termination or integrated cable
- Integrated molded cable reduces wiring time
- Two to six contacts available
- Optional red or green LED indicators
- Some styles offer flexible installation due to rotating head
- IP67 protection on certain models
HS6B Subminiature
2 or 3 contacts
Screw termination
Metal or plastic head
HS5D Miniature
30 x 30 x 90mm
2 or 3 contacts
Screw termination
Metal or plastic head
HS1B Full Size
52 x 35 x 125mm
2 contacts
Screw termination
Die-cast aluminum body
HS2B Full Size
52 x 35 x 125mm
2 contacts
Screw termination
Die-cast aluminum body
HS6E Subminiature w/ Locking
75 x 15 x 75mm
500N
5 contacts
Integrated cable
Plastic body
HS5E-K Miniature w/ Locking
35 x 40 x 146mm
1400N
4 contacts
Integrated cable
Metal head, plastic body
HS5L Miniature w/ Locking
35 x 40 x 127mm
1400N
4 contacts
Integrated cable
Metal head, plastic body
HS1C Full Size w/ Locking
106 x 35 x 125mm
1500N
3-4 contacts
Screw termination
Die-cast aluminum body

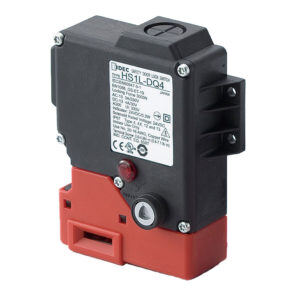

HS1L Full Size w/ Locking
104 x 35 x 129mm
3000N
6 contacts
Screw termination
Plastic body
HS1T Series
Smallest in the industry with 5000N locking force
ISO 14119:203
Spring clamp terminal
200mA solenoid consumption
HS7A-DMC Non-Contact Magnetic
7 x 16 x 51mm
1NO+1NC, or 2NO contacts
Models with 2m, 5m, 10m cable
Light weight - only 3.6oz
HS7A-DMP Non-Contact Magnetic
25 x 88 x 13mm
1NO+2NC, or 2NO+1NC contacts
2m, 5m, 10m cable length
HS3A Non-Contact RFID
High protection against tampering
3 contacts
HS9Z-A61
Actuator Key Straight Type
HS9Z-A62
Actuator Key Right Angle Type
HS9Z-A62S
Actuator Key Right Angle Type
HS9Z-A65
Actuator Key Adjustable Type
HS9Z-A66
Actuator Key Adjustable Type
HS9Z-A51
Actuator Key Straight Type
HS9Z-A52
Actuator Key Right Angle Type
HS9Z-A55
Actuator Key Adjustable Type
HS9Z-A51A
Actuator Key Straight Type
HS9Z-A52A
Actuator Key Right Angle Type
HS9Z-A1
Actuator Key Straight Type
HS9Z-A2
Actuator Key Right Angle Type
HS9Z-A3
Actuator Key Adjustable Type
HS9Z-A1S
Actuator Key Straight Type
HS9Z-A2S
Actuator Key Right Angle Type
HS9Z-A3S
Actuator Key Adjustable Type
-edit.jpg?width=1200&length=1200&name=AdobeStock_219100685_(1)-edit.jpg)
CATALOG
Selection Guide
View more in our selection guide.
