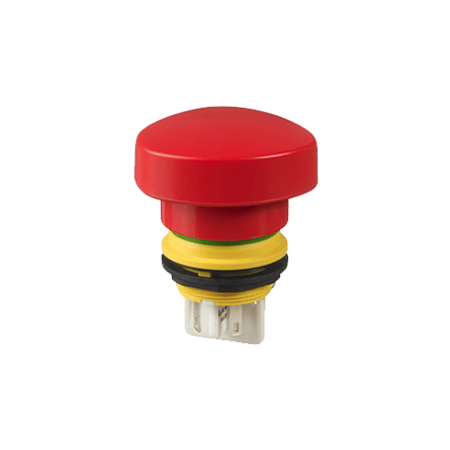

7 reasons to consider PCB-mounted E-stop switches

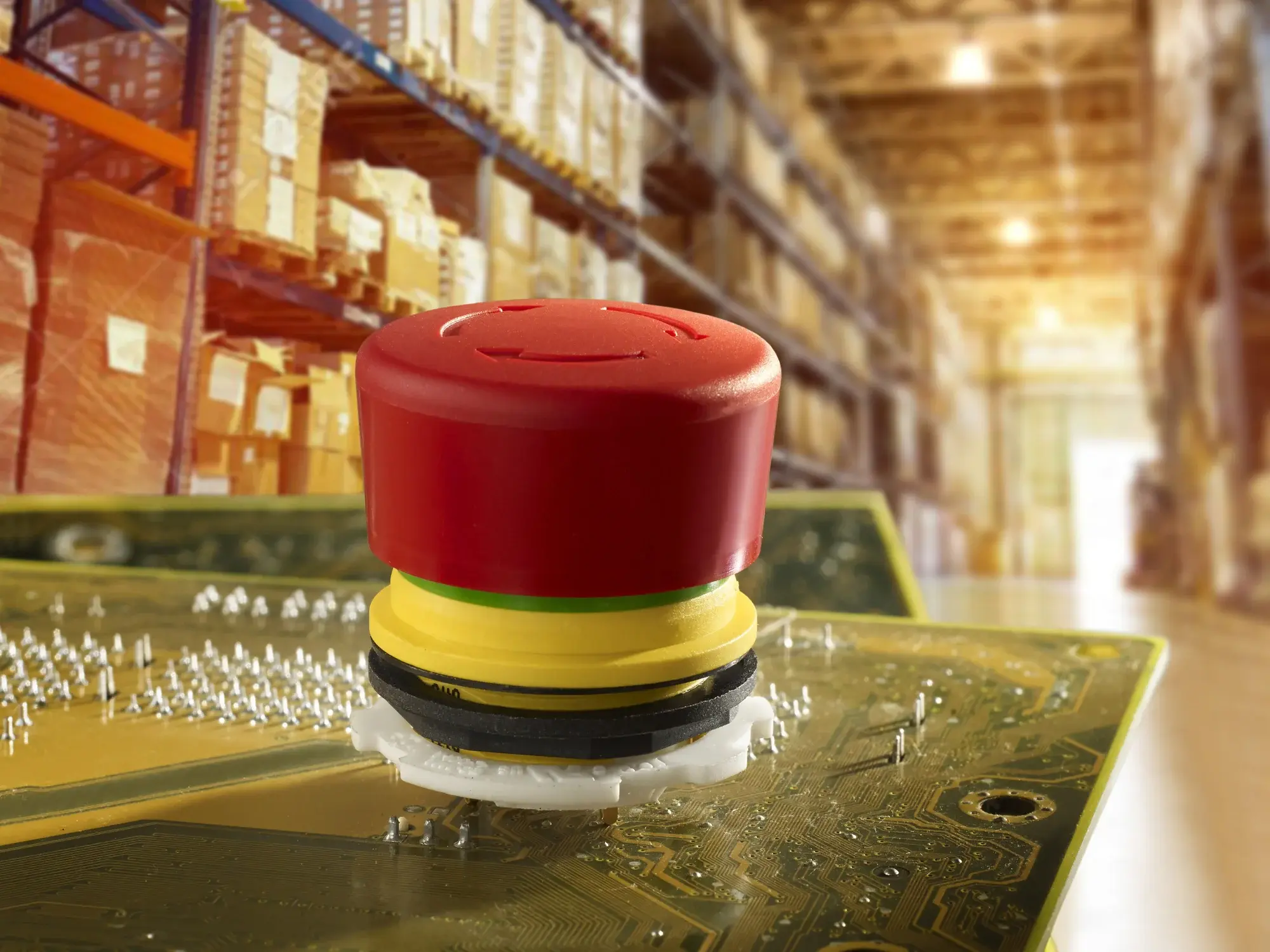

Emergency-Stop switch connected to a PCB: what are the key benefits?

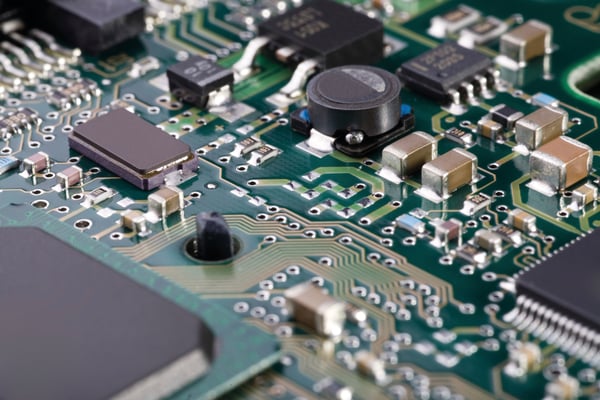

1. Simplified wiring and space efficiency

One of the most immediate benefits of connecting an E-stop to a PCB is the simplification of wiring. Traditionally, Emergency-stop buttons required complex, hard-wired connections to relays, control panels, and other machinery. This could be a cumbersome process, especially in large-scale systems with multiple E-stops. By integrating the switch into a PCB, the complex wiring is significantly reduced. The PCB can route the necessary connections between the E-stop button and the machine’s control system through simple, compact traces. This reduces the clutter of wires, minimizes the space required for wiring, and makes the entire system more organized and easier to maintain.

2. Reduced risk of faults and wiring issues

A PCB-based design helps eliminate many of the common issues associated with physical wiring, such as loose connections, broken wires, or grounding problems. With traditional wiring, human error during installation or environmental factors such as heat or humidity can cause wires to degrade over time, leading to faults and potentially dangerous situations. In contrast, a PCB is a more robust, stable solution. The components are firmly soldered onto the board, creating a durable and reliable connection. Additionally, a well-designed PCB can minimize the distance between the Emergency-stop button and the controlling circuitry, reducing the likelihood of signal loss or interference, thus improving the reliability of the E-stop function.

3.  Improved signal integrity and faster response times

In safety-critical applications, every millisecond matters. When an emergency stop button is pressed, it’s crucial that the signal reaches the control system quickly to initiate a shutdown. The PCB acts as a highly efficient pathway for electrical signals, ensuring minimal delay.

Since the E-stop switch is directly connected to the PCB, the system can process the signal much faster than it could with traditional wiring. The reduced distance between the button and the control system helps minimize any lag in communication, which can be crucial when every moment counts. Moreover, because the PCB's design is optimized for high-speed signals, it is less likely to experience signal degradation, ensuring that the Emergency-stop function is effective and reliable.

4. Cost-effectiveness and scalability

From a design and manufacturing standpoint, PCBs are cost-effective compared to traditional wiring systems. With PCBs, manufacturers can streamline production by incorporating various functions into a single board, which minimizes the need for multiple components and complex wiring. This not only reduces the material cost but also shortens the assembly time.

Furthermore, a PCB-based system can be easily modified or scaled. If a company needs to upgrade or add E-stops to a system, this can be done with minimal changes to the existing design. For larger or more complex machines, a multi-layer PCB can accommodate additional safety features and support multiple E-stop buttons or other emergency functions in one compact solution.

5. Compact and modular design

In many industries, space is a premium commodity, particularly in machines and automation systems. A PCB-based Emergency-stop switch solution allows for a more compact design, which is a significant advantage in systems where space is limited.

Additionally, the modular nature of PCBs allows for easier upgrades and replacements. When components on the PCB need to be changed or enhanced, they can be replaced individually without overhauling the entire system. This modularity helps reduce downtime, maintenance costs, and the complexity of future updates.

6. Integration with other systems and control logic

One of the key advantages of using PCBs in industrial automation systems is their ability to integrate seamlessly with other electronic systems. An E-stop connected to a PCB can be easily interfaced with other control systems, such as programmable logic controllers (PLCs), sensors, and alarm systems.
