IDEC HIGH-PERFORMANCE HMI TOUCHSCREENS



Smart, tough, and built for the real world

From compact machines to large-scale systems, IDEC touchscreen HMIs are designed to do more than display data—they bring control to life. With brilliant displays, rugged construction, and seamless connectivity, our HMIs are made for demanding environments where downtime is not an option. Each model combines sleek interface design with industrial-grade durability to help you build intuitive, efficient operator experiences—no matter the application or conditions.

Whether you need a slim 4.3” panel or a large 15” display, every screen in the IDEC lineup delivers performance you can count on—and visibility your team will appreciate.

COMPARE MODELS

FolderHMI-2screen-R

COMPACT MODELS

From 229€

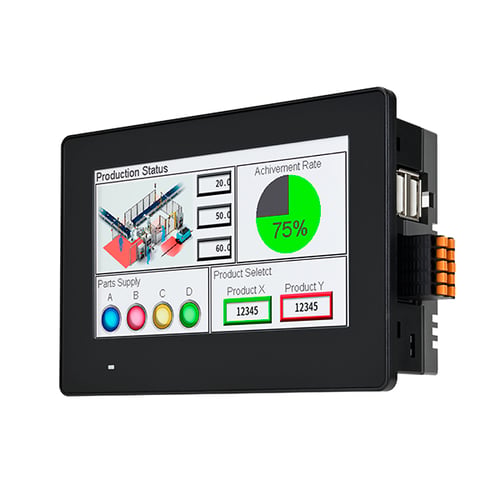

HG1J 4.3in PCAP Touchscreen

 HG1J-4FT22TG-B-JP4-with-screen
This compact 4.3-inch operator interface is engineered for space-constrained industrial environments. With a tempered glass PCAP touchscreen, it ensures high visibility, multi-touch capability, and enhanced durability. Its IoT-ready features and IP66F/IP67F protection make it ideal for modern industrial automation systems.
From 299€


HG2J 7in PCAP



HG2J-jp2
Slim, durable, and multi-touch ready, the HG2J is ideal for industrial and vehicle environments. Its sleek design with water-resistant PCAP technology ensures reliable operation and long-term performance.
VIEW HG2J PRODUCT DETAILS

MULTIMEDIA MODELS

From 599€


HG3G 8in or 10in TFT

 HG3G_VA_Series
A high-performance HMI available in 8.4 and 10.4-inch formats, combining a high-resolution 1024 × 768 display with excellent visibility. With remote access, video and audio interfaces, support for up to four communication protocols simultaneously, and expandable analog and digital I/O — HG3G brings advanced functionality to medium-sized machine interfaces.
From 749€


HG4G 12in TFT

 HG4G_1
A high-performance 12.1-inch HMI designed for applications requiring more screen space and advanced connectivity. Featuring a 1024 × 768 display, remote access, video and audio interfaces, support for up to four protocols simultaneously, and expandable I/O — HG4G provides greater flexibility for more complex machine interfaces.
From 899€


HG5G 15in TFT

HG5G_1
A high-performance 15-inch HMI offering maximum display space for information-rich machine interfaces. Combining a bright 1024 × 768 touchscreen with remote access, video and audio interfaces, multi-protocol communication, and expandable I/O — HG5G is designed for applications where visibility and extensive functionality are key requirements.

COMPARE IDEC
HMI OPTIONS



  HG1J-4FT22TG-B-JP11 HG2J HG3G_1 HG3G_VA_Series HG4G_1 HG5G_1


HG1J 4.3"

HG2J 7"

HG3G 8"

HG3G 10"

HG4G 12"

HG5G 15"
Price From 229€ From 299€ From 599€ From 649€ From 749€ From 899€
Display type 4.3" TFT PCAP LCD 7" PCAP LCD 8.4" TFT LCD 10.4" TFT LCD 12.1" TFT LCD 15" TFT LCD
Resolution 480x272 800x480 1024x768 1024x768 1024x768 1024x768
Brightness (cd/m²) 500 500 800 700 600 650
Operating temperature (°C) -20 to +55 -20 to 60 -20 to 60 -20 to 60 -20 to 60 -20 to 66
Colors 16M 65K 65K 65K 65K 65K
Backlight lifespan (hours) 50,000 min 50,000 min 100,000 min 100,000 min 100,000 min 100,000 min
Degree of protection IP66F / IP67F IP66F / IP67F IP66F / IP67F IP66F / IP67F IP66F / IP67F IP66F / IP67F
Supply voltage 12/24 VDC 12/24 VDC 12/24 VDC 12/24 VDC 12/24 VDC 12/24 VDC
Mobile app compatibility ✔
 ✔ ✔ ✔
 ✔
 ✔
Support up to 4 protocols ✔ ✔ ✔
 ✔
 ✔ ✔
3-year Warranty ✔ ✔
 ✔
 ✔ ✔
 ✔
FTP support ✔ ✔ ✔ ✔ ✔ ✔
Ethernet, RS485, RS232 ✔ ✔ ✔
 ✔
 ✔
 ✔
Video & audio interface ×
 ×
 ✔
 ✔
 ✔
 ✔
BACnet protocol ×
 ×
 ✔ ✔ ✔
 ✔
I/O expansion modules × × ✔
 ✔ ✔ ✔



DOWNLOAD THE HG1J & HG2J CATALOG DOWNLOAD THE HG SERIES CATALOG





Initial version:

FolderHG1G_Silver

HG1G 4.3" Compact

 HG1J

HG1J 4.3"

 HG2J

HG2J 7"

 HG3G_1

HG3G 8"

 HG3G_1

HG3G 10"

 HG4G_1

HG4G 12"

 HG5G_1

HG5G 15"

4.3" TFT LCD

display type

4.3" TFT PCAP LCD

display type

7"  PCAP LCD

display type

8.4"  TFT LCD

display type

10.4"  TFT LCD

display type

12.1"  TFT LCD

display type

15"  TFT LCD

display type

480x272

resolution

480x272

resolution

800x480

resolution

1024x768

resolution

1024x768

resolution

1024x768

resolution

1024x768

resolution

800

brightness (cd/m²)

500

brightness (cd/m²)

500

brightness (cd/m²)

800

brightness (cd/m²)

700

brightness (cd/m²)

600

brightness (cd/m²)

650

brightness (cd/m²)

-20 to 55

Operating temperature (°C)

-20 to +55

Operating temperature (°C)

-20 to 60

Operating temperature (°C)

-20 to 60

Operating temperature (°C)

-20 to 60

Operating temperature (°C)

-20 to 60

Operating temperature (°C)

-20 to 60

Operating temperature (°C)

65K

colors

16M

colors

65K

colors

65K

colors

65K

colors

65K

colors

65K

colors

70,000 min

backlight lifespan (hours)

50,000 min

backlight lifespan (hours)

50,000 min

backlight lifespan (hours)

100,000 min

backlight lifespan (hours)

100,000 min

backlight lifespan (hours)

100,000 min

backlight lifespan (hours)

100,000 min

backlight lifespan (hours)

IP66F / IP67F

degree of protection

IP66F / IP67F

degree of protection

IP66F / IP67F

degree of protection

IP66F / IP67F

degree of protection

IP66F / IP67F

degree of protection

IP66F / IP67F

degree of protection

IP66F / IP67F

degree of protection

12/24 VDC

supply voltage

12/24 VDC

supply voltage

12/24 VDC

supply voltage

12/24 VDC

supply voltage

12/24 VDC

supply voltage

12/24 VDC

supply voltage

12/24 VDC

supply voltage

×

mobile app compatibility

✔

mobile app compatibility

✔

mobile app compatibility

✔

mobile app compatibility

✔

mobile app compatibility

✔

mobile app compatibility

✔

mobile app compatibility

✔

support up to 4 protocols

✔

support up to 4 protocols

✔

support up to 4 protocols

✔

support up to 4 protocols

✔

support up to 4 protocols

✔

support up to 4 protocols

✔

support up to 4 protocols

✔

3-year Warranty

✔

3-year Warranty

✔

3-year Warranty

✔

3-year Warranty

✔

3-year Warranty

✔

3-year Warranty

✔

3-year Warranty

✔

FTP support

✔

FTP support

✔

FTP support

✔

FTP support

✔

FTP support

✔

FTP support

✔

FTP support

✔

Ethernet, RS485, RS232

✔

Ethernet, RS485, RS232

✔

Ethernet, RS485, RS232

✔

Ethernet, RS485, RS232

✔

Ethernet, RS485, RS232

✔

Ethernet, RS485, RS232

✔

Ethernet, RS485, RS232

×

video & audio interface

×

video & audio interface

×

video & audio interface

✔

video & audio interface

✔

video & audio interface

✔

video & audio interface

✔

video & audio interface

×

BACnet protocol

×

BACnet protocol

×

BACnet protocol

✔

BACnet protocol

✔

BACnet protocol

✔

BACnet protocol

✔

BACnet protocol

×

I/O expansion modules

×

I/O expansion modules

×

I/O expansion modules

✔

I/O expansion modules

✔

I/O expansion modules

✔

I/O expansion modules

✔

I/O expansion modules







Need assistance selecting the right HMI?

Our experts are available to guide you through the selection process. Share your application requirements, and we’ll help you choose the best-fit solution for your project.
