SX8R series bus coupler module

Flexible and high-performance solution for remote I/O applications

GET STARTED

The SX8R Series Bus Coupler Module provides a flexible and high-performance solution for remote I/O applications. It supports multiple communication protocols, making it easy to integrate with different control systems.

Users can select from more than 40 IDEC FC6A MicroSmart PLC I/O modules, supporting a wide range of digital and analog signals. The system can be expanded with up to 15 modules, providing up to 480 digital I/O points, 120 analog inputs, and 60 analog outputs. The maximum number of SX8R nodes depends on the host controller and communication protocol used.

A simple configuration tool stores all settings, reducing setup time and eliminating the need for repeated configuration. The SX8R Series is designed for reliable operation in demanding environments, with a wide operating temperature range from -25°C to 65°C.

Built for long-term durability and dependable performance, the SX8R Series is backed by an industry-leading three-year warranty.

Key features

scheme

Network compatibility

modules

Extensive I/O module selection

settings

User-friendly configuration tool

KEY FEATURES

Remote I/O system using industrial ethernet

Remote I/O systems reduce maintenance time, wiring materials, and cable laying in distributed control, as well as decrease the total cost by downsizing the control panel.

The impact of signal weakening and background noise caused by long-distance transmission is minimized.

LEARN MORE
SX8R-English Catalog (1)
KEY FEATURES

Compatible with major open networks

SX8R-img04
EP1824-0-SX8R-1
KEY FEATURES

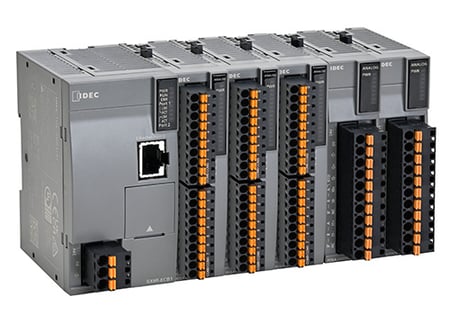

Build a system with flexible I/O modules

Paired with IDEC's MicroSmart FC6A I/O modules, it facilitates the seamless creation of a remote I/O system. A wide variety of MicroSmart FC6A I/O modules (48 models) can be used to build an efficient remote I/O system.

The detailed configuration options are available in the datasheet.

DOWNLOAD DATASHEET
SX8R-US (10)
EP1824-0-SX8R copy
KEY FEATURES

Simultaneous communication with two master stations

A controller and monitoring device can be connected at the same time, even on different networks. You can build a control and monitoring system with a single remote I/O coupler.

LEARN MORE



KEY FEATURES

Connect up to 15 I/O modules

Maximum of 7 I/O modules can be connected.

Additional 8 expansion modules can be connected by installing the expansion interface module.

SX8R-English Catalog (3)
KEY FEATURES

For various applications with a wide temperature range

SX8R-US (9)

Wide operating temperature range

Suitable for use in hot and cold environments ranging from -25°C to +65°C.

SX8R-img05-EN

I/O module

Wide range of IDEC MicroSmart FC6A modules compliant with various safety standards. Various relay modules also available.

SX8R-English Catalog (2)

Baseless structure

Minimal space is needed as no base unit installation is required. I/O modules can be added after installation, enabling flexibility.

Industry solutions

Wastewater treatment

Food / Packaging machinery

Conveyor equipment / Conveyor

HVAC（air conditioning control, chiller market)

Machine tools

Irrigation and agriculture

product_sx8r
RESOURCES

SX8R-ECB4

We’ve gathered some of the key documents and resources you may need. For full product information, including 3D files, library packages and technical documentation, please visit the product page.

GO TO THE PRODUCT PAGE
CATALOG & DATASHEET

Remote I/O system

Develop robust remote I/O systems using our wide range of I/O modules

DOWNLOAD CATALOG
SX8R Catalog Thumbnail
SOFTWARE

Easy configuration and monitoring with dedicated software

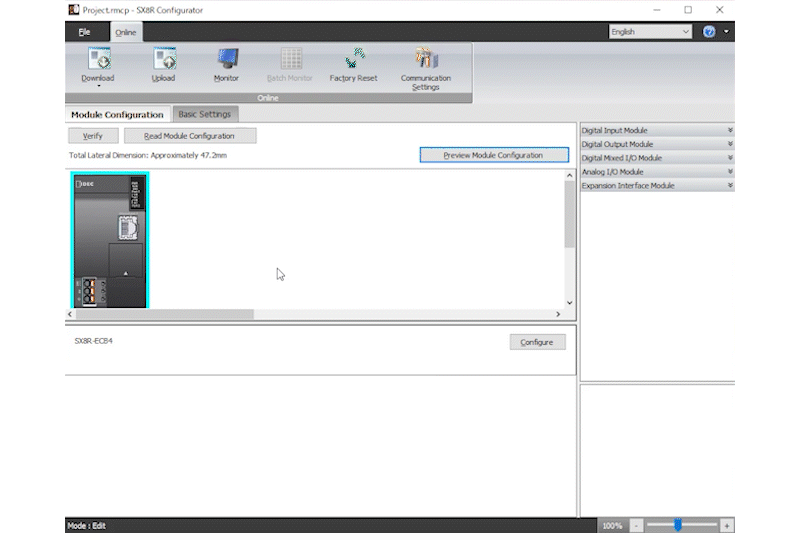

The dedicated PC configuration tool "SX8R Configurator" (free) is available for configuring communication and module settings. Drag and drop functionality allows easy configuration of I/O modules.
The ON/OFF status of digital I/O modules and the current values, set values, and error information of analog I/O modules can be monitored remotely.

OS: Windows 11, Windows 10
CPU: 1.0GHz or higher
Memory: 2GB or higher
Environment: Microsoft.NET 6.0 or later

DOWNLOAD SOFTWARE
software-EN-2

FC6A plus PLC and SX8R configuration procedures
