OVERVIEW

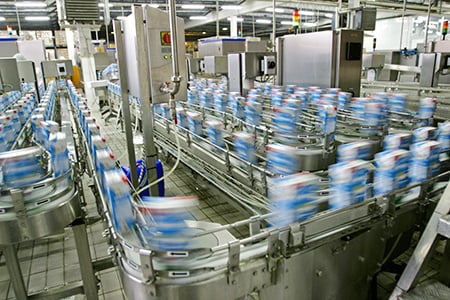

Conveyor Line

Reduced touch panels on transport lines.



KEY FEATURES

The use of the tablet is increasing more and more. What about the safety side...

In the field of automated transportation, where automated guided vehicles (AGVs) and autonomous mobile robots (AMRs) are used, there is an increase in collaborative environments where people work cooperatively with AGVs, AMRs, and automated warehouses, as opposed to the conventional environment where the operation area of those equipments are separated from the work area of the people.
In these environments, tablets that can display a lot of information are increasingly being introduced for manual operations such as maintenance and route setup. However, there are still safety concerns in the field where people and robots work together.

en-HT3P-sol03-01
n-HT3P-sol03-02

KEY FEATURES

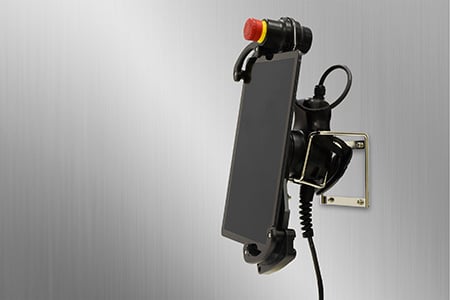

Easily add Safety functions to your tablet, and help comply with ISO 3691-4!

For such cases, IDEC recommends "Safety Commander", which integrates safety functions such as "Emergency Stop Switches" and "Enable Switches" on commercially available tablets.
In addition, by using this product, the requirements of AGV safety standard: ISO 3691-4 (hold-to-run control) can be met and the risk of danger to the operator during manual operation can be reduced. By combining the "operability" of a tablet with the "safety" of manual operation, it is possible to provide users with a comfortable
HT3P-brochurethmb

CATALOG

HT3P Series Safety Commander™ Product Catalog

Discover additional information about the HT3P Series Safety Commander™ within this catalog.

us-HT3P-future05

TECHNICAL ARTICLE

Get a Grip on Industrial Mobile Devices.

Modern consumer-grade tablets can provide a flexible and capable automation HMI experience, but only when used with the right specialized component to safely integrate them into the industrial environment.



LINEUP

HT3P-goods-image

HT3P Safety Commander™

The Safety Commander™ makes it easy to hold a tablet securely in an industrial setting, for applications like machinery, robotics, automatic guided vehicles (AGVs), and production lines.

SafetyCommanderKit-HT3P

HT3P Safety Commander™ Starter Kit

KIT-HT3P provides the complete offer for customers seeking to evaluate the Safety Commander™ solutions as the potential replacement of teaching pendants or control panels on the factory floor.



Frequently Asked Questions

What accessories are included in the Safety Commander™?

The following maintenance parts are included.

  • Hand strap (HT9Z-3PS1)
  • Telescopic lock release key (HT9Z-3PK01)
  • Sponge sheet for thickness adjustment (HT9Z-3PHA04)
What are the dimensions of the tablet that fits in the Safety Commander™?
Tablet diagonal length: 240~300mm (Screen sizes of 8 to 11 inches)
Are there any restrictions on thickness?

Standard: ~10mm
If the tablet is too thin, please use the included thickness adjustment sponge sheet that comes as standard accessory.
If the tablet thickness is between 11mm and 18mm, please use HT9Z-3PHB08. if the tablet thickness is between 19mm and 24mm, please use HT9Z-3PHB14.

Is it possible for the user to replace the switch, enable, etc.?
The e-stop or enable switch cannot be replaced at customers end.
Is it possible to customize the emergency stop and enable?
Please contact one of our sales representative for customizations.
Is it possible to use it outdoors?
Specifications of this product are for indoor use.
What is the recommended model for connecting with safety relay modules?
The recommended safety relay module is our HR5S, HR6S Series.
Does USB C support data transfer?
No, it is for charging purpose only.
Does is support wired/wireless communication?

Emergency stop and enable SW are not supported by wireless.
The safety devices are wired, and only the tablet is configured to communicate via WIFI.
