OVERVIEW

Discover the Next Generation of HMI

IDEC's operator interface products are the perfect solution for your display needs. Bright LCD touchscreens deliver crisp images with powerful configuration tools that allow you to easily create a user-friendly and powerful system to enhance your "Human Machine Interaction."

4.3"
Compact Series



These super-bright and compact TFT color LCD displays also list a long backlight life.

  • Sunlight-readable brightness of 800 nits
  • Support most of the features of a large screen
  • A wide range of operating temperatures
  • Priced to fit in a tight budget

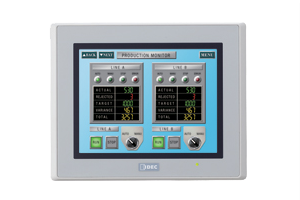

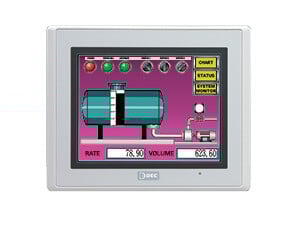

5.7"
Enhanced Series



The cost-effective Enhanced HMI series offers quality features at an affordable price.

  • 65K color display with brightness of 500 nits
  • 16-shade monochrome display with brightness of 1100 nits
  • Best-in-class LED backlight life of 100,000 hours
  • A wide range of operating temperatures

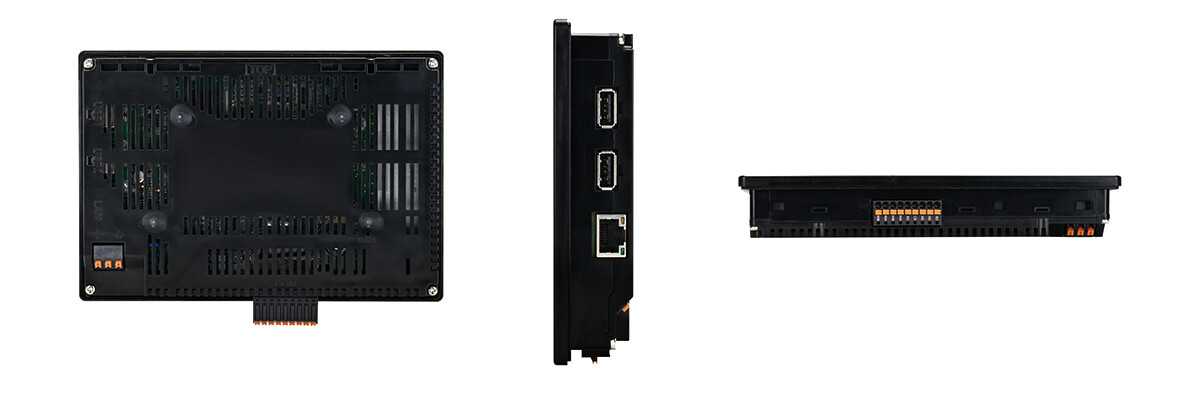

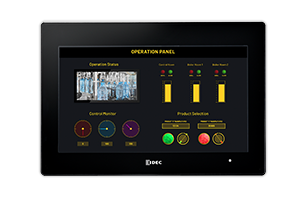

7" HMI
HG2J Series



Offered in a popular size form factor, this HMI uses projected capacitive (PCAP) technology to provide a slimmer and sleeker appearance, small installation footprint, improved performance, and longer life.

  • Smartphone-Type Glass Touch Panel
  • 12-24 VDC input Voltage
  • 800 x 480 High Resolution
  • 50,000 Hours Backlight Life
  • 500 cd/m² Brightness
  • Wide range of Operating Temp

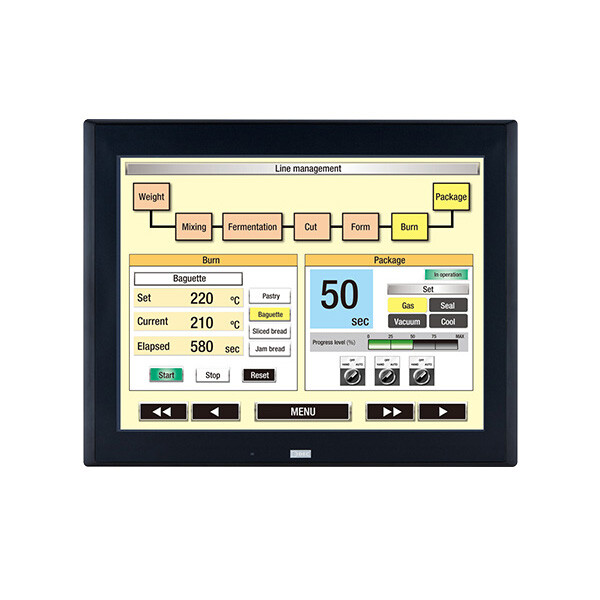

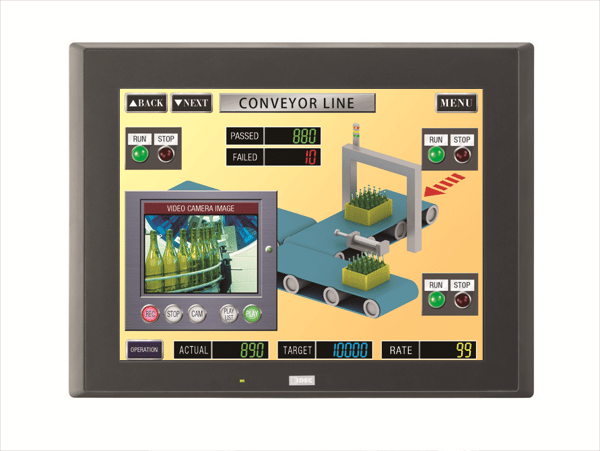

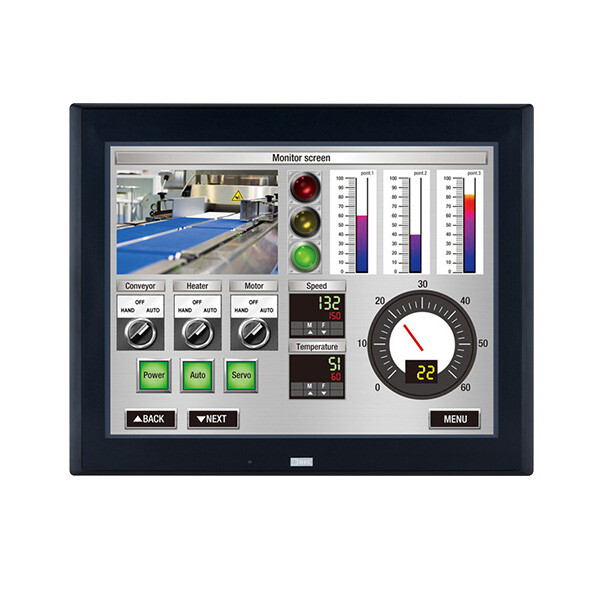

5.7”, 8.4”, 10.4”, 12.1”, 15"
High-Performance Series



The Enhanced High Performance HMI Series brings efficiency to a new level with industry-leading lifespan and brightness.

  • Fast operation and response times
  • Support up to four analog and digital I/O expansion modules
  • Built-in Video/Audio interface (8.4” - 15” screens only)
  • Best-in-class LED backlight life of 100,000 hours
  • Wide range of Operating Temperature



KEY FEATURES

Comparison By Features



  HG1G HG2G-5T HG2J Series High Performance
   4.3" 5.7"  7" 5.7"  8.4"  10.4"  12.1"  15"
Images HG1G HG2G-mono HG2G-color 7-HMI-thmb HG2G-HP HG4G-CJT22MF-B HG3G-2 HG4G-CJT22MF-B HG5G-Series-image
Touch Type Analog Resistive Analog Resistive Analog Resistive  Project Capacitive Analog Resistive
Display Type Color-TFT Monochrome Color-TFT Color-TFT Color-TFT
Color Depth 65,536 2 65,536 65,536 65,536
Rated Power Voltage 12 to 24 VDC 12 to 24 VDC 12 to 24 VDC 12 to 24 VDC 24 VDC
Resolution 480 x 272 320 x 240 320 x 240 800x480 640 x 480 1024 x 768
Backlight Life 70,0000 hours min. 100,000 hours min. 50,000 hours 100,000 hours min.
Brightness (cd / m2) 800 1100 500 500 800 700 600 650
SD Card Slot - - - -
Expansion I/O module - - - -
Serial Ports 1 (RS-232), 1 (RS-485, RS-422) 1 (RS232, RS485,RS422) 1 (RS232, RS485,RS422) 1 (RS232, RS485,RS422) 2 (RS232, RS485,RS422)
Ethernet Ports RJ-45 RJ-45 RJ-45 RJ-45 RJ-45
USB Ports 1 Type A/ 1 MiniB 1 Type A/ 1 MiniB 1 Type A/ 1 MiniB 2 Type A 1 Type A/ 1 MiniB
Video *1/Audio Out *2 - - - - - 2 Video Inputs/ 1 Audio Out
Approvals

IP66F/IP67F, UL508, CSA
C22.2 No. 142, 213
ANSI/ISA - 12/12.01,
Type 4X & 13, Class 1 Div 2

IP66F, UL508, CSA C22.2 NO 142.213 ANSI/ISA:12.12.01
Type 4x & 13
Class I Div 2
IP66F, UL508, CSA C22.2 NO 142.213 ANSI/ISA:12.12.01
Type 4x & 13
Class I Div 2
IP66F/IP67F, UL61010-2-201, UL121201
CSA C22.2 No.61010-1-12
CSA C22.2 No.61010-2-201
CSA C22.2 No.213
Type 4X & 13, Class 1 Div 2
Safety S , UL61010-2-201, UL12.12.01
CSA C22.2 No.61010-1-12
CSA C22.2 No.61010-2-201
CSA C22.2 No.213
IP66F/IP67F, Type 4X, 12, and 13
Class I Div 2
Ship Classification Standards
ABS, LR, NK, DNV GL






WindNV

SOFTWARE DOWNLOAD

WindO/I-NV4 Software

The WindO/I-NV4 software revolutionizes HMI configuration with its user-friendly, drag-and-drop interface and a 5,000 symbol library, enabling swift creation of advanced graphics. Seamlessly convert projects across different HMI sizes and enjoy robust communication capabilities with support for over 100 major PLC protocols, ensuring unparalleled flexibility and efficiency.
