OVERVIEW

A Combined PLC+HMI

A technologically advanced vivid multi-touch display, with an integrated PLC controller and expandable I/O, makes the new SmartAxis Series a leading choice for many applications across a wide variety of industries.

A wide operating temperature range of -20°C to +55°C as well as IP66F, IP67F, Type 4X, 12, 13, and Class I Div 2 approval ratings, assures reliable operation in the toughest environments. These touchscreens are built for endurance and are backed by an industry-leading three-year warranty.

FolderFT2J-img10-new-US-01-01
ft1j-datasheet-thumbnail
FT2J US Datasheet Thumbnail
FT1J-FT2J US Catalog Thumbnail

Design-in More Function with Enhanced Features

Combining a PLC and touchscreen HMI interface into a single platform provides many advantages for monitoring and controlling smaller machines, process skids, and HVAC systems.

Dual CPU configuration for high-speed processing

The FT1J and FT2J feature two CPUs working in parallel for the PLC and HMI. This design enables high-speed, real-time control without compromising HMI functionality, broadening the range of compatible applications.

FT2J-img07-en (1)
FEATURES

One Compact Design

FT1J-1-US
FT2J-img03
KEY FEATURES

Compact design

One PLC + HMI consumes less panel space than separate units. The FT1J requires only approx. half the depth of the two devices combined, and the FT2J requires approx. a third of the depth.

REQUEST A DEMO ASK A QUESTION

Simplified Installation

A combined PLC+HMI minimizes wiring time because no connections need to be made between the PLC and HMI, a single power source powers both the PLC and HMI, and only one network connection needs to be made to the outside world. Plus, push-in type power connector is used for providing easy installation and service.

Reduced power consumption

The FT1J consumes approx. 30% less power than a PLC and display combined, and the FT2J consumes approx. 40% less.*

* Compared with equivalent models (the FC6A-C16R4CE and HG1J-4FT22TG-S for the FT1J, and the FC6A-C24R4CE and HG2J-7UT22TF-B for the FT2J).

FT2J-img05-newtw
FT2J-Main-US (7)

Coin cell batteries not required

Battery-free design with data stored on nonvolatile magnetic media. Time information is preserved with power from large-capacity capacitors. ;Since lithium batteries are not consumable, they are not affected during ocean and air transportation and do not require maintenance for battery replacement, leading to reduced waste.

Streamlined Programming

The combined PLC+HMI unit tightly integrates the PLC and HMI programming into a single suite of software which cuts configurations and programming time, and the PLC+HMI is ready to use and communicate right out of the box.

P1774-0-Automation-Organizer-logo

Adaptable Hardware

FT1J-3-US
FT2J Input-output

Advanced PLC Control Capabilities

With built-in full function controller features and functions, both onboard and expandable I/O, the SmartAxis Series comes with built-in analog inputs/outputs and enhanced PLC features, including PID, PWM control, script programming and much more.

FT2J-Main-US (3)

I/O expansion with cartridges

Up to 2 digital I/O cartridges or analog I/O cartridges can be connected, to add up to 8 digital I/O and up to 4 analog I/O.

FolderFT2J-Main-US (2)

Analog I/O

Equipped with a built-in analog I/O to control analog signals from 0 to 10V DC (4 to 20 mA) with 12-bit resolution. An analog potentiometer connected to the analog input allows for easy configuration of analog settings, such as a timer.

FT2J-Main-US (1)

PID temperature control

A PID algorithm is used to enable cascade control. Available for applications requiring temperature, flow, and pressure control.

Cutting Edge HMI Design

The HMI’s projected capacitive touch panel (PCAP) advanced technology saves space while providing a smaller footprint and improves performance. This PCAP touch panel provides a high degree of visibility, durability, and functionality. In addition to being multi-touch, this PCAP touch panel is compatible with thin gloves.

FT1J-2-US

Highly visible glass-top structure

Easily kept clean using chemical washdown or simple wipes. Besides being water- and scratch-resistent, PCAP is responsive and provides high tolerance to resist false signals when dirt or water droplets are present on the face of the HMI.

FT2J-Main-US (5)
FT2J-img06-en

No mechanical durability issues

The PCAP touch panel uses a sensor board to detect changes in electric charge to identify the position of the touch. There is no mechanical deterioration, allowing for agile operation, and multi-touch sensing gloves less than 1.5mm thick1 can be used.

1. The touchscreen may not work with gloves thicker than 1.5mm, depending on the material of the gloves and environment.

Use of tempered glass for exceptional strength, protective film also included for the unlikely event of damage

The tempered glass maintains high impact resistance. The FT2J's panel (covered with protective film) passed a drop test with a 1kg steel ball (dropped onto the center of the glass from a height of 60cm). At a drop height of 80cm, even if the glass was damaged the protective film prevented glass shards from being scattered.2

2. The stated results are from in-house testing and do not guarantee performance.

Water pressure test on tempered glass

Steel ball drop test on tempered glass (front of the panel)
(sample used: HG2J (the same panel and size as the FT2J))

High durability and advanced features

Robust controllers built for demanding environments

Extreme Operating Temperatures

-20 to 55°C, suitable for both hot and cold environments.

Long LED Backlight Life

Industry-leading 50,000 hours of backlight life ensures longevity.

Low Maintenance

Battery-free MRAM and hyper-capacitor design eliminates the need for battery replacements.

Reduced Power Consumption

Consumes approximately 40% less power than separate PLC and HMI combined.

Support Multi-Touch

PCAP touchscreens provide multi-touch capabilities and respond to a light touch without needing force.

FolderIDEC-FT2J-In-Use-2

Operates with or without Gloves

The touchscreen works seamlessly with gloves on or off, enhancing usability.

Waterproof/Oil Resistance

IP66F and IP67F ratings make these units suitable for wash-down applications and subject to oil spills.

Industry Leading Warranty

Built for endurance and backed by a three-year warranty.

Certifications

UL61010, UL Type 4X, 12, and 13, Class I Div 2 for hazardous locations.

Prevent Accidental Input Due to Water Droplets

Self-capacitance technology ensures that the touchscreen is not affected by water drops, preventing accidental inputs.

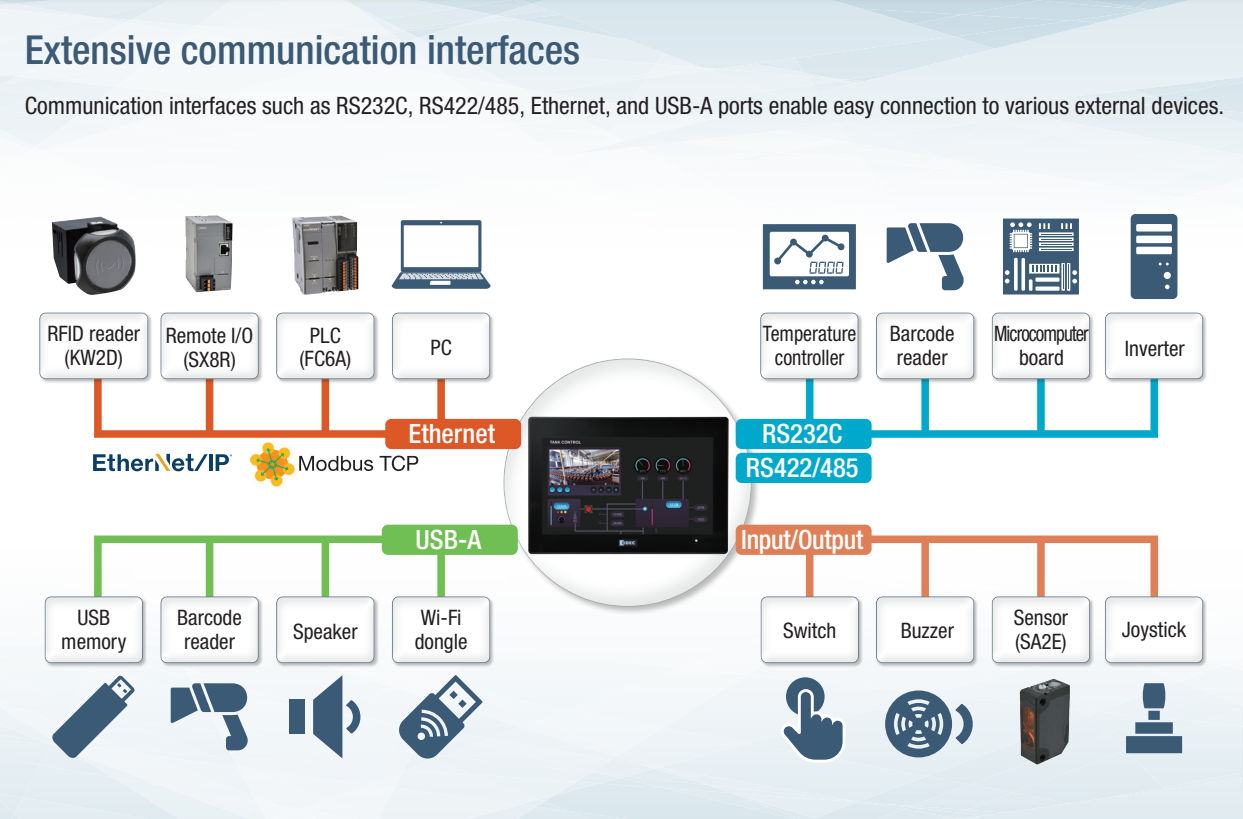

A HMI for seamless communication with other devicesand for various applications

extensive communication interfaces ft1j ft2j
IOT Compatible ft1j ft2j
PART NUMBERS

FT1J Part Numbers

Name

Interface

Part No.

4in PLC+HMI 12IO Relay Black Bezel

4in PLC+HMI 14IO Trans Sink Black Bezel

4in PLC+HMI 14IO Trans Source Black Bezel

 FT1J-4F12RAG-B-image-01

FT1J-4F12RAG-B

FT1J-4F14KAG-B

FT1J-4F14SAG-B

4in PLC+HMI 12IO Relay Silver Bezel

4in PLC+HMI 14IO Trans Sink Silver Bezel

 4in PLC+HMI 14IO Trans Source Silver Bezel

 FT1J-S-01

FT1J-4F12RAG-S

FT1J-4F14KAG-S

FT1J-4F14SAG-S




FT2J Part Numbers


Name

Shape

Part No.

7inch PLC+HMI 22IO Trans. Sink

7inch PLC+HMI 22IO Relay

 7inch PLC+HMI 22IO Trans. Source

 FT2J-US-Img

FT2J-7U22KAF-B

FT2J-7U22RAF-B

FT2J-7U22SAF-B
 FT2J UV protective sheet FT2J-PN1
 FT9Z-2D7PN05
 SmartAXIS 16pin terminal plug FT2J-PN2  FT9Z-XT16P
 SmartAXIS 11pin terminal plug FT2J-PN3



FT9Z-XT11P




Applications

Industry Applications

Solutions

Remote I/O

The SX8R Bus Coupler Module offers an ideal solution for addressing the limited I/O points on the PLC+HMI unit. By integrating the SX8R, you can effortlessly expand your I/O points using major open network protocols such as EtherNet/IP, Modbus TCP, or CC-Link IE Field Basic. This flexibility ensures seamless connectivity and scalability, allowing your system to adapt to increasing demands and enhancing overall operational efficiency.

FolderEP1824-0-SX8R-Microsite-image-2

Our SX8R Bus Coupler provides the perfect blend of versatility, reliability, and performance, making it the ideal choice for industrial automation applications of any scale. Whether you're upgrading existing systems or building new installations, our Bus Coupler provides the connectivity and flexibility you need to succeed.

An exceptionally wide operating temperature range of -25 to +65 ˚C as well as IP20, and Class I Div 2 approval ratings, assures reliable operation in the toughest environment. This SX8R Bus Coupler is built for endurance and is backed by an industry-leading three-year warranty.

Experience seamless integration and enhanced efficiency with our Bus Coupler.  Learn More
