The ultimate selection
Find the perfect E-Stop with ease
We've created a comprehensive comparison table to help you quickly find the ideal E-Stop by checking key technical characteristics.
How it works:
- Each reference is clickable, redirecting to its product page on idec.com/en-eu or apem.com.
- Click on any Part Number (PN) to access datasheets, download 3D models, or request a quote.
- Includes a selection of IDEC and APEM E-Stops along with relevant accessories.
Where to buy the E-Stop 50 selection?
Find a trusted distributor near you and get the right Emergency Stop solution for your needs.
Dive into the selection
Click on the link bellow to explore the series of your choice:E-Stops with removable contact blocks:
Unibody E-Stops:
Some of the part numbers listed below are not displayed on our website. Don't worry, we have them in stock. Contact us directly and we will make sure you get your order quickly.
A01ES-D
Removable contact block
Compact and versatile, ideal for various applications.
- Panel hole size: Ø16mm
- Mushroom size: Ø24-27.44, 40mm
- Removable contact block: yes
- Reset type: Twist release
- Connection type: Solder/quick connect
- Max. number of contacts: 2
- Protection rating: IP65
- Above panel height: 21.12 mm
- Behind panel depth: 33,48 mm
- EMO option: No
- Operating temperature: -20°C to +55°C
Non-illuminated:
A01ES-D + A0154B-D
X6
Unibody
Robust and durable, designed with smooth finish
|
Non-illuminated: |
E-Stop shrouds: |

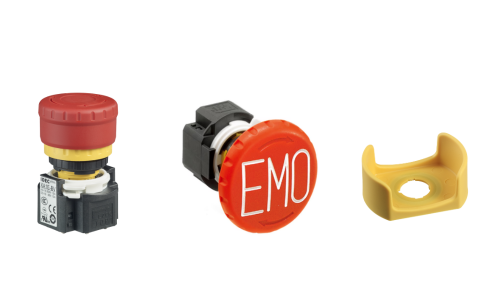

XA
Removable contact block
Robust and reliable, suitable for harsh industrial environments
- Panel hole size: Ø16mm
- Mushroom size: Ø30, 40mm
- Reset type: Turn/Pull Release
- Connection type: Solder, Solder/tab, PC board
- Max. number of contacts: 4
- Protection rating: P65, IP40
- Above panel height: 21.5mm
- Behind panel depth: 27.9mm
- Degree of pollution: 3 (inside LED unit:2)
- EMO option: Yes
- LED voltage: 3-6V, 24V
- Operating temperature: -25 to +60°C (no freezing)
Illuminated: –25 to +55°C (no freezing)
|
Non-illuminated: |
Illuminated: E-Stop shrouds: |
XA
Unibody
Sleek and modern design, perfect for space-constrained installations
- Panel hole size: 16mm
- Mushroom size: Ø30mm
- Reset type: Turn/Pull Release
- Connection type: Solder, Solder/tab
- Max. number of contacts: 2
- Protection rating: IP65, IP67, IP69K
- Above panel height: 21.5mm
- Behind panel depth: 12.6mm
- Degree of pollution: Panel front:3, Panel back: 2
- EMO option: No
- LED voltage: 24V
- Operating temperature: -25 to +70°C (no freezing)
Illuminated: –25 to +55°C (no freezing)
|
Non-illuminated: E-Stop shrouds: |
Illuminated: |

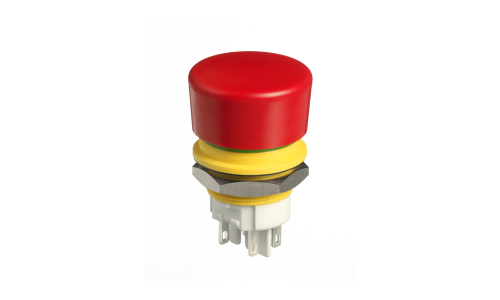

EC
Unibody
Compact and integrated connector, ideal for mobile applications
Non-illuminated:
EC-BTT-F-104-A

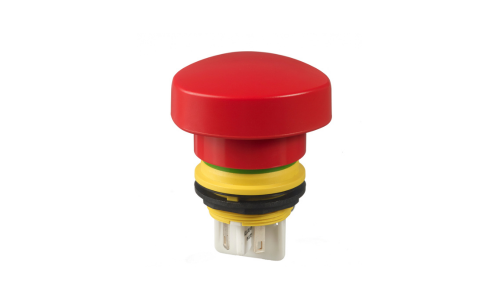

EC Compact
Unibody
Ultra-compact design for minimal space requirements
Non-illuminated:
EC-AMA-F-013-A

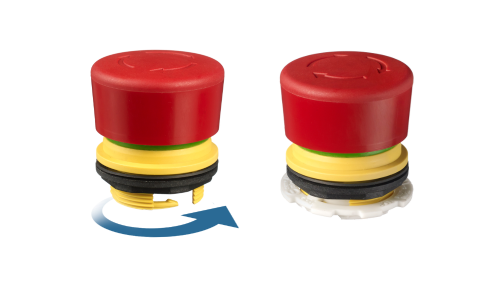

EC for PCB
Removable contact block
Compact emergency switches, ideal for PCB applications
Non-illuminated:
EC-AMA-H-001-A + EC-AMA-L-001-A

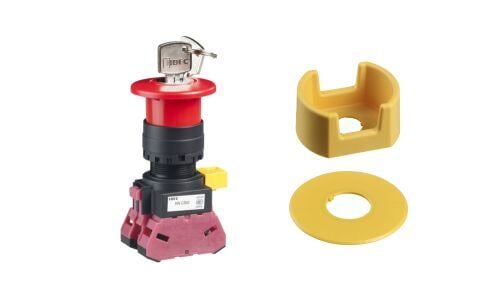

HW
Removable contact block
Compact emergency switches, ideal for PCB applications

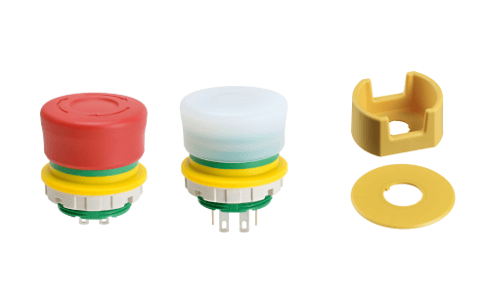

XW
Unibody
Performance focused solution with push-in terminal option
- Panel hole size: Ø22mm
- Mushroom size: Ø30mm
- Reset type: Turn/Pull Release
- Connection type: Solder terminal, Solder/tab
- Max. number of contacts: 2
- Protection rating: IP65, IP67, IP69K
- Above panel height: 21.5mm
- Behind panel depth: 12.6mm
- Degree of pollution: Panel front:3, Panel back: 2
- EMO option: Yes
- Operating temperature: -25 to +70˚C (no freezing)
Illuminated: -25 to +55˚C (no freezing)
|
Non-illuminated:
|
Illuminated: |
|
Shrouds: |
Nameplate: |

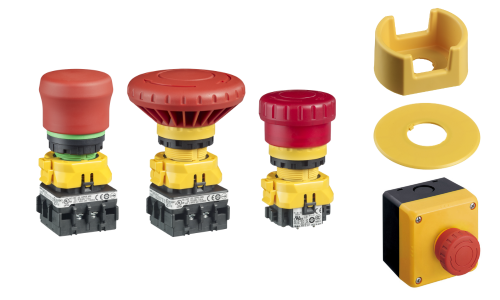

XW
Removable contact block
Versatil solution with varied actuator oprtions
- Panel hole size: Ø22mm
- Mushroom size: Ø40/60mm
- Reset type: Turn/Pull Release
- Connection type: Screw
- Max. number of contacts: 4
- Protection rating: IP65, IP67
- Above panel height: 32mm
- Behind panel depth: 48.7mm
- Degree of pollution: 3
- EMO option: Yes
- LED voltage: 24V
- Operating temperature: –25 to +60°C (no freezing)
Illuminated: –25 to +55°C (no freezing)
|
Non-illuminated: |
Illuminated: |
|
Shrouds: |
Nameplate: |

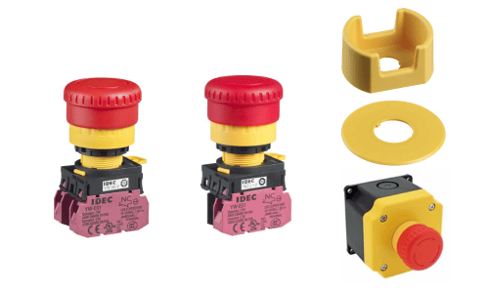

YW
Removable contact block
Versatil solution with varied actuator oprtions
- Panel hole size: Ø22mm
- Mushroom size: Ø40mm
- Reset type: Turn/Pull Release
- Connection type: Screw, push-in
- Max. number of contacts: 3
- Protection rating: IP65
- Above panel height: 32.5mm
- Behind panel depth: 42.3mm
- Degree of pollution: 3
- EMO option: No
- LED voltage: 24V
- Operating temperature: –25 to +55˚C (no freezing)
|
Non-illuminated: |
Illuminated: |
|
Shrouds: |
Nameplate: |
XN1E
Removable contact block
Versatil solution with varied actuator oprtions
- Panel hole size: Ø30mm
- Mushroom size: Ø40mm
- Reset type: Turn/Pull Release
- Connection type: Screw
- Max. number of contacts: 4
- Protection rating: IP65
- Above panel height: 33mm, 21mm
- Behind panel depth: 47.7mm, 60.4mm
- Degree of pollution: 3
- EMO option: No
- LED voltage: 24V
- Operating temperature: –25 to +60°C (no freezing)
Illuminated: –25 to +55°C (no freezing)
|
Non-illuminated: |
|
Need help choosing the right E-Stop?
Looking for a datasheet, CAD file, or have specific questions about an E-Stop switch? Our team is here to provide the technical details you need to make the right choice.
Contact us
