ALL-IN-ONE HMI+PLC



Integrated control and visualization for next-generation automation

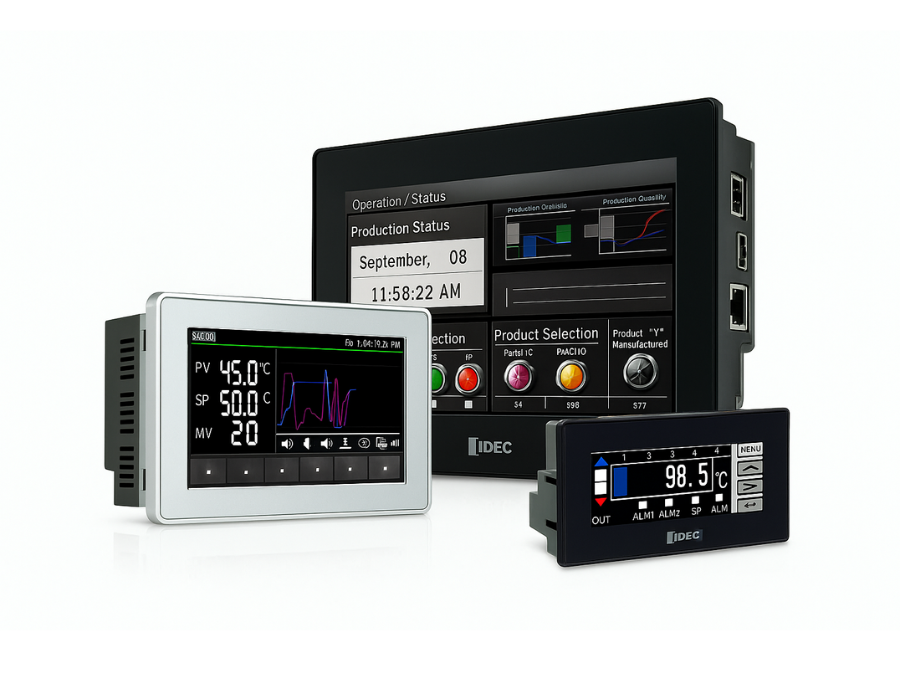

Combine real-time control with intuitive visualization in a single device. IDEC’s all-in-one PLC+HMI units streamline system architecture, reduce wiring, and simplify maintenance — all while offering high performance, connectivity, and reliability in harsh industrial environments. Designed for space-saving installations, our FT Series brings flexibility and IIoT readiness to a wide range of applications.


FT series_IDEC HMI-PLC
Deco_left
NEW


FT1J 4.3inch PLC+HMI

Compact. Intelligent. Connected.
A powerful 4.3-inch unit that merges high-speed PLC processing with a projected capacitive touchscreen. Featuring dual CPUs, analog I/O, PID control, high-speed inputs, and MQTT protocol support for IIoT connectivity — FT1J is the ideal choice for modern automation.

SEE PRODUCT PAGE
FT1J 4.3inch PLC+HMI

COMPARE IDEC
ALL-IN-ONE PLC+HMI



  FT1A-C14KA-B-jp2 FT1J-4F14SAG-S-jp13 FT2J-jp12


FT1A 3.8"

FT1J 4.3"

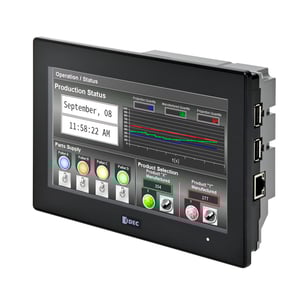

FT2J 7"
Display size  3.8" 4.3" PCAP 4.3" PCAP
I/O configuration options 8 inputs / 4 DO + 2 AO 8 inputs / 4 DO + 2 AO 10 DI + 4 AI / 8 outputs
Ethernet port ✔ ✔ ✔
CPU configuration Single CPU Dual CPU Dual CPU
Comms support Modbus TCP & RTU, Ethernet/IP, MQTT Modbus TCP & RTU, Ethernet/IP, MQTT Modbus TCP & RTU, Ethernet/IP, MQTT
Analog inputs 2 built-in 2 built-in 4 built-in
Analog outpouts 2 built-in 2 built-in 2 built-in
Optional expansion Cartridges ✔ ✔ ✔
Control features PID Controls Wide range of control functions Wide range of control functions
Supply voltage 24 VDC 24 VDC 24 VDC
Maintenance port USB maintenance port Via Ethernet port Via Ethernet port
Operating temperature -20 to 55°C -20 to 55°C -20 to 55°C
Degree of protection IP66F IP66F, IP67F IP66F, IP67F
Design notes Compact package for small-scale applications Space-saving, environmentally-friendly, IoT-compatible Environmentally-friendly, IoT-compatible



DOWNLOAD THE FT SERIES CATALOG

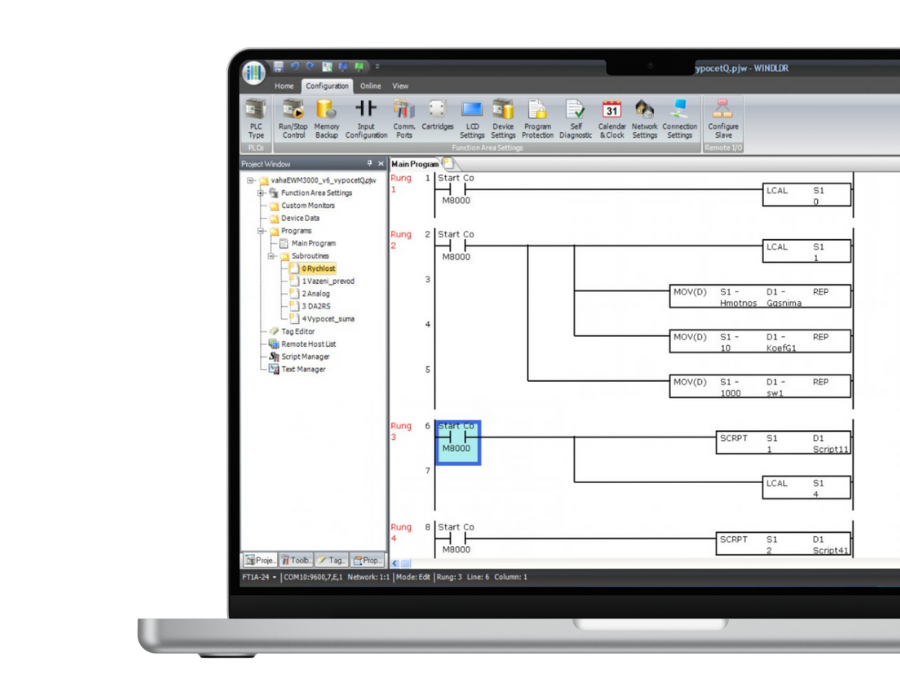

SOFTWARE & PROGRAMMING TOOLS



The combined PLC+HMI unit tightly integrates the PLC and HMI programming into a single suite of software which cuts configurations and programming time, and the PLC+HMI is ready to use and communicate right out of the box.

For FT1A Series:

DOWNLOAD THE DEMO SOFTWARE I-NV3

WindOI_NV3



For FT1J & FT2J Series:

DOWNLOAD THE DEMO SOFTWARE I-NV4

WindOI_NV4



IDEC_hero-image

Contact an IDEC Specialist

Looking for advice or support? Our automation experts are here to help you choose the right all-in-one unit for your project.
